Pegasus Slip ring collectors

Catalog

Request form

Instructions

Certificates

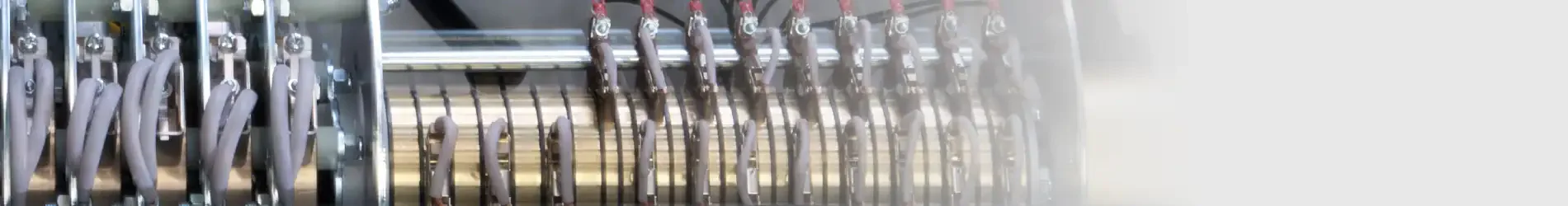

Electric slip ring collector designed to transfer AC / DC current from a stationary supply point to a rotating structure, transmitting power and control signals, both analogue and digital, to mobile units. Thanks to the high degree of customization this model of slip ring is used in a variety of industrial sectors, on cranes, rides, packaging plants.

Shop

3D View

Configurator

Features

Electric slip ring collector suitable for data and control applications.
They support the major high speed data transmission and industrial bus system protocols.
High quality materials and components guarantee reliability and durability.
IP protection degree: Pegasus collectors are classified up to max. IP 65.

Options

High degree of customization thanks to fully modular construction system.
Different assemblies available for low voltage.
On request, they can be equipped with hydraulic couplings.

Models

Pegasus 200A.
Pegasus 400A.
Pegasus 650A.

Certifications

CE marking.

GENERAL TECHNICAL SPECIFICATIONS

Ambient temperature	Storage +10°C/+50°C
Ambient temperature	Operational -25°C/+70°C
IP protection degree	IP 54
Insulation category	Class I
Operating positions	Any position
Cable entry	Depending on the request

ELECTRICAL SPECIFICATIONS

Type	Pegasus 200A	Pegasus 400A	Pegasus 600A
Rated operational current	Up to 200 A	Up to 400 A	Up to 600 A
Rated operational voltage	Up to 680 Vac
Maximum speed	30 rpm
Suitable for transferring DC current	Yes

TRANSMISSIONS PROTOCOL SPECIFICATIONS

Data transmission protocol	Ethernet CAT 5
	ProfiBus
	ProfiNet
	LAN
	CAN-Bus
	CANOpen
Maximum speed	100 Mbit/s

Applications
